TRACKING TEMPERATURE MADE EASY!
G7 provides a simple but flexible solution of the wireless sensor platform in both hardware and software. Users can make use of their own sensors with G7 transmitter, receiver and system. IoT application of wireless data exchange can easily be built for “Smart Factory, Smart Farming, and Intelligent Industry of Security”.
With 3 simple components, tracking temperature is now simpler and easier.
- • SERVER / WIRELESS CLIENT
- • BASE STATION

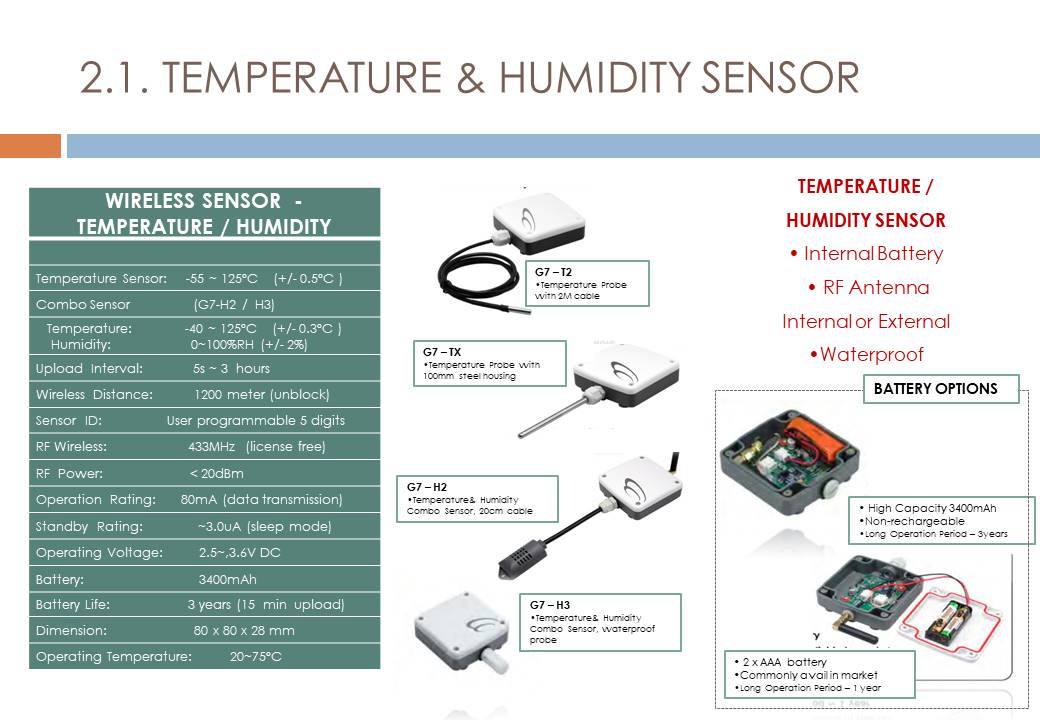

- • TEMPERATURE / HUMIDITY SENSOR
BEST USES FOR:
- 1. Agricultural and Farming
- 2. Tank and Cold Storage
- 3. Pharmacy Automation
- 4. Industrial and Manufacturing
- 5. Data Center
- 6. Medical / Environmental

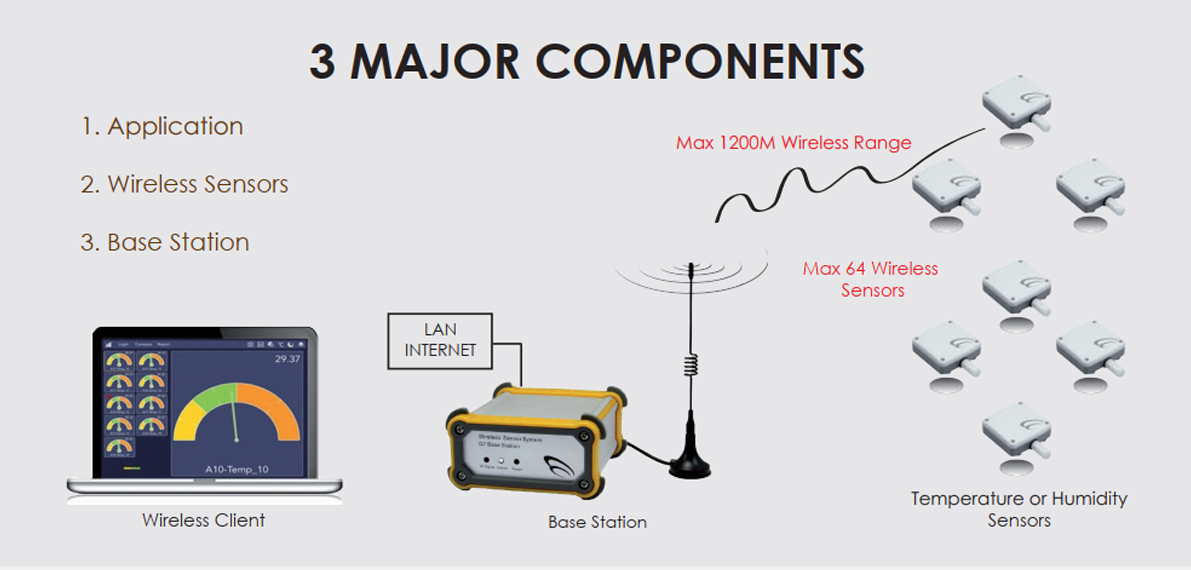

3 MAJOR COMPONENTS
- 1. APPLICATION
- By using G7 Wireless Client Lite, users receive data from Base Station over LAN or Internet directly. Data will be displayed in graphics and saved into file for future analysis
- 2. WIRELESS SENSOR
- Sends real time data wirelessly through radio wave to the Base Station.

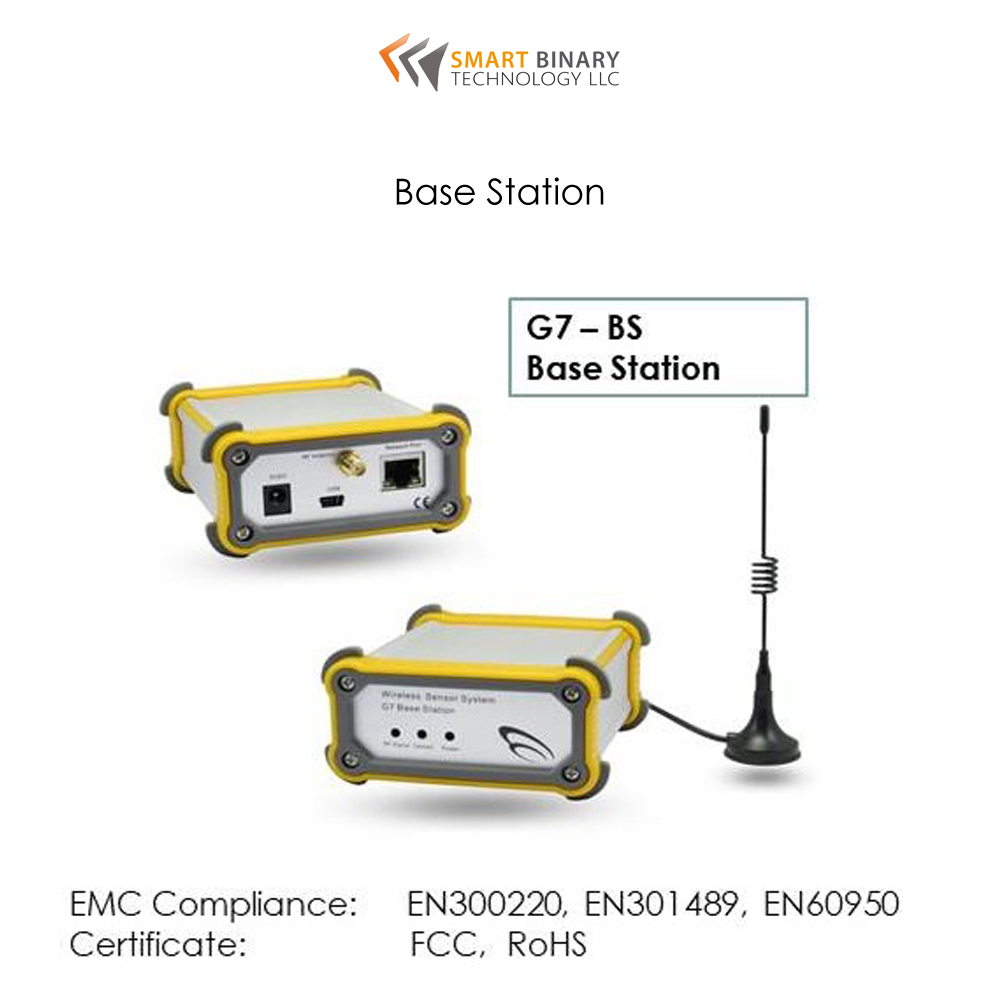

- 3. Base Station
- Collects the measurement of all wireless sensors, and uploads to central computer.
Both station and sensor are easily configured by setup software via USB port.
- 1. Wireless Sensor System provides online monitoring of wireless temperature and humidity sensors over the Ethernet network.
- 2. Wireless sensor transmits the measurement to Base Station via wireless RF signal. With a maximum 1200M range.
- 3. Connect up to 64 wireless sensors either temperature or humidity; Base Station uploads data to central over Ethernet in an industrial standard Modbus TCP protocol.
- 4. Wireless Client Lite for Windows allows the user to receive the data directly from Base Station and save into local storage.
- 5. Wireless Sensor System provides easy installation, configuration, and flexibility and expandability of temperature humidity monitoring in the factory, food chain, supermarket, cold food storage, and industrial plant.
- 6. Wireless Sensors can be installed anywhere in the storage racks without the hassle of cabling and installation.
- 7. Sensors can be relocated to fit different cargo sizes and material.
- 8. Alarm Monitoring Software allows real-time monitoring and user alert in the central office.
- 9. No cabling is needed. All sensors are waterproof and battery-operated for a long period.
