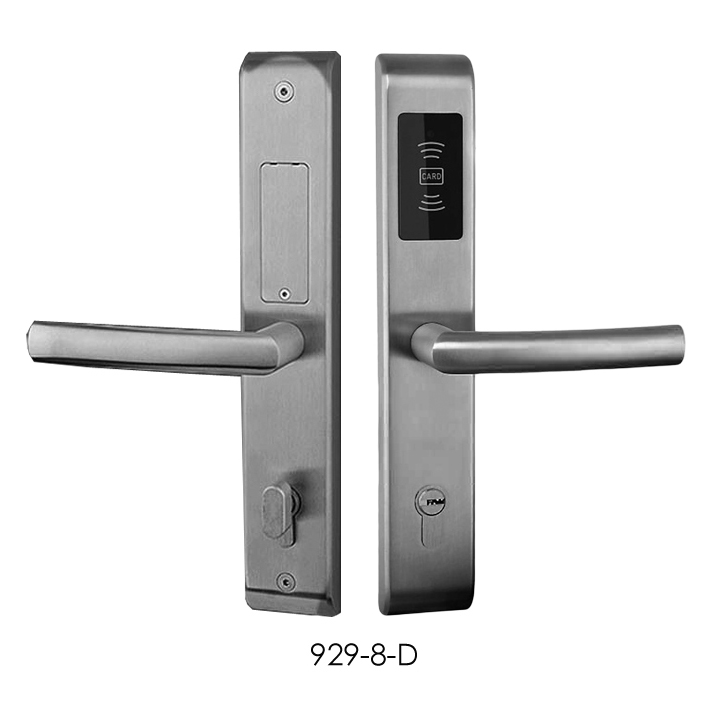

929-8-D

Quick Overview

    Slim fashionable design, modern European style

    • 304 Stainless steel

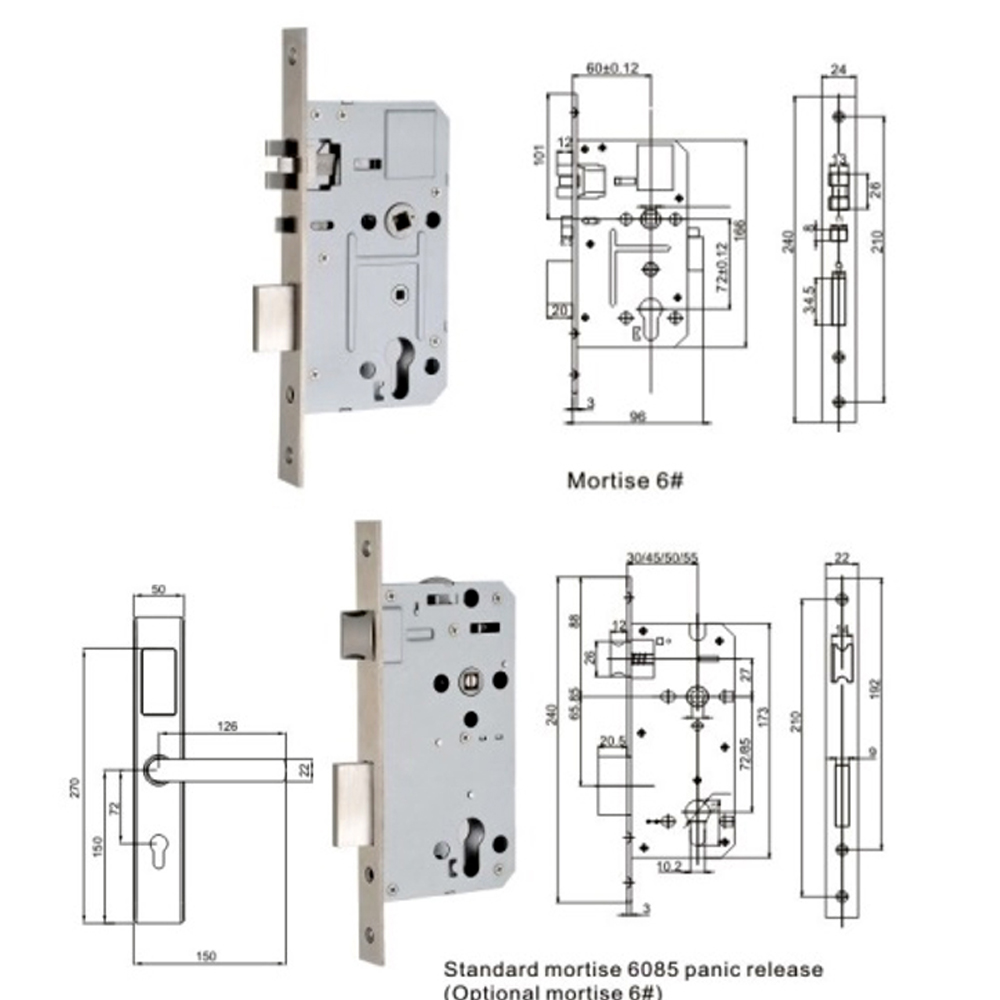

    • Applicable with European standard mortise
    • Axis distance from handle center to cylinder can be 70mm, 72mm, and 85mm
    • Replace old mechanical lock easily. No need to change old mortise or old door

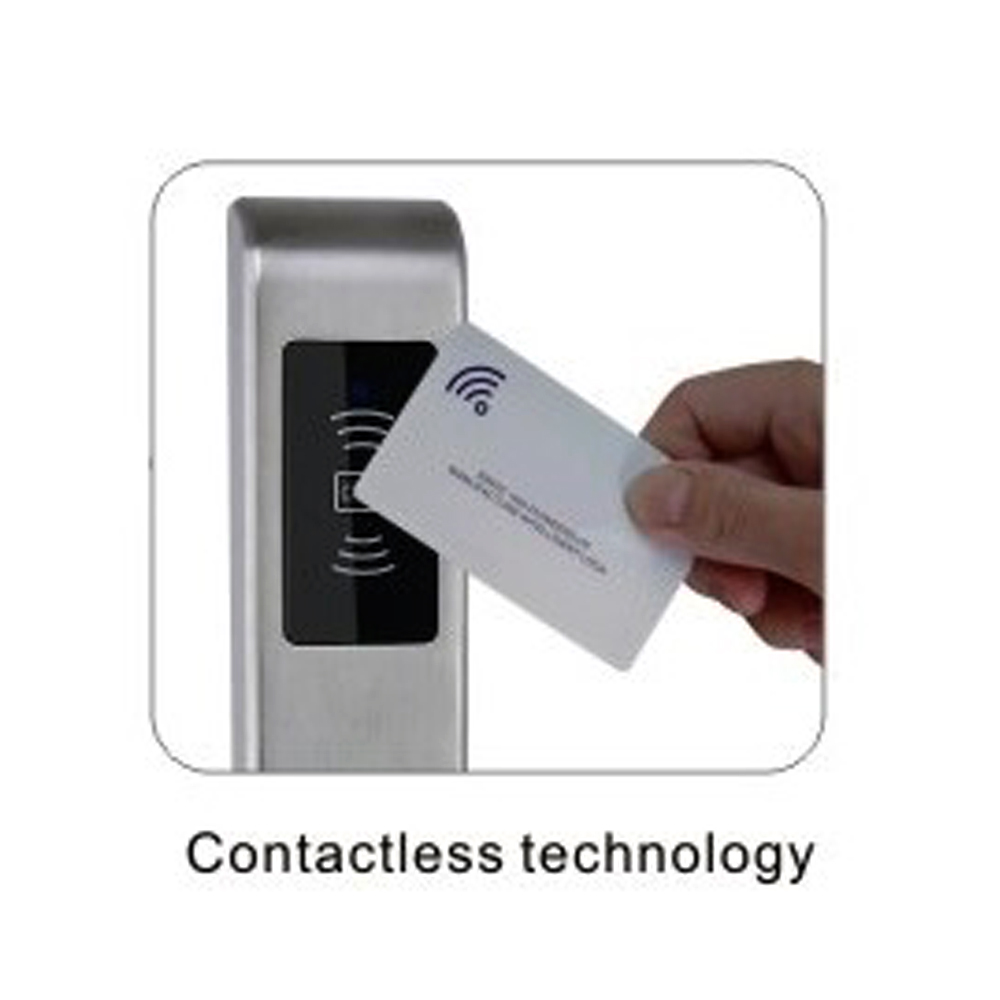

    • Detect card mode: Advance Micro Wave
    • Can work with or without software (specify when placing order)
    • Suitable for Hotel, Commercial Offices, School, Government, Hospital, Marine and Residences
    • 304 Stainless steel
    • Applicable with European standard mortise
    • Axis distance from handle center to cylinder can be 70mm, 72mm, and 85mm
    • Replace old mechanical lock easily. No need to change old mortise or old door
    • Detect card mode: Advance Micro Wave
    • Can work with or without software (specify when placing order)
    • Suitable for Hotel, Commercial Offices, School, Government, Hospital, Marine and Residences

SPECIAL FEATURES:

    Applicable Card: Temic, Mifare, EM/ID
    Material: Stainless Steel 304
    Mechanical Key Override: Yes
    Battery: 4 AAA alkaline batteries 18months old in normal state
    Indication: Light, Sound (beep, Music or music option)
    Deadbolt Indication: Blue and red light when touch card
    Unlocking Record for Trail: Yes
    Low Voltage Warning: Yes
    Passage Mode for Meeting Room: Yes
    Static Consumption: 12uA
    Dynamic Consumption: 300mA
    Humidity: 20% - 80%
    Working Temperature:-10̊°C - 60°C
    Handle Optional: C, E, Handle or client specified
    Packing: 6pcs ctn, 18KG/ctn, 38*36*37cm

COLOR OPTIONS:

      1. Stainless Steel
