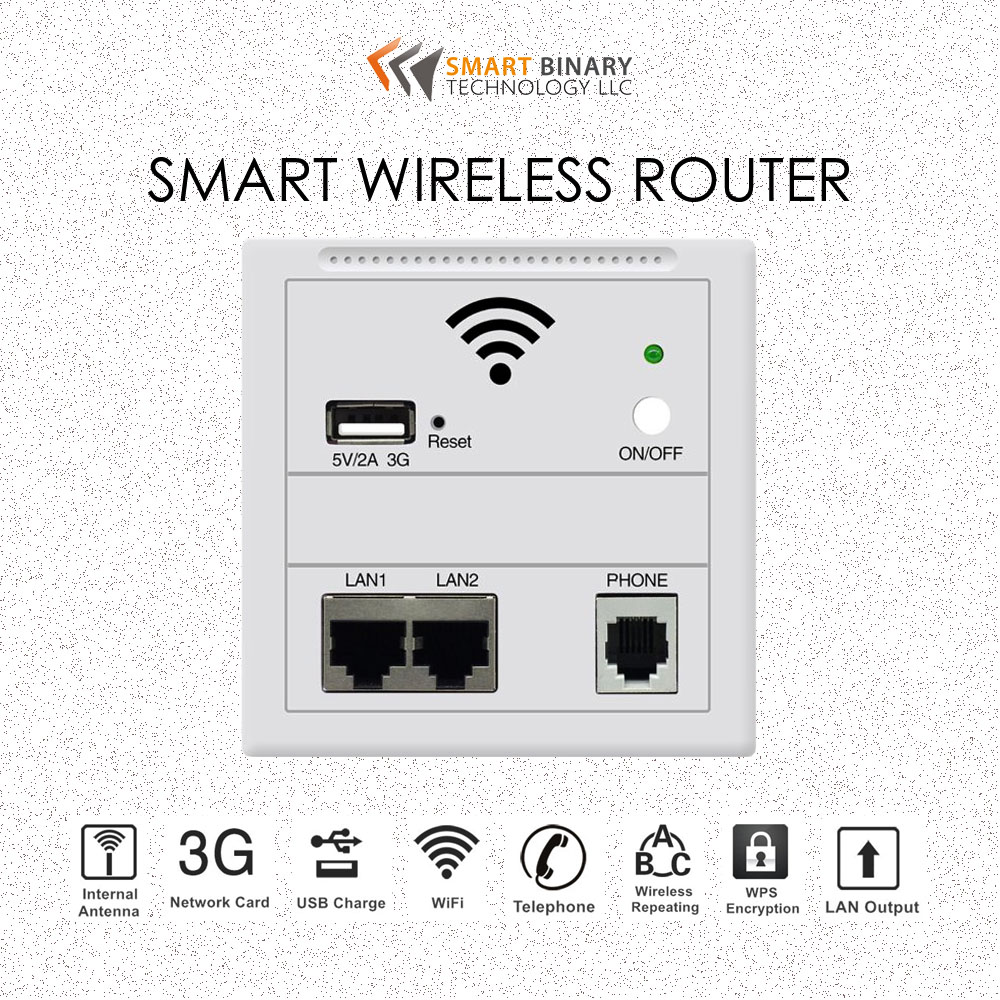

Quick Overview

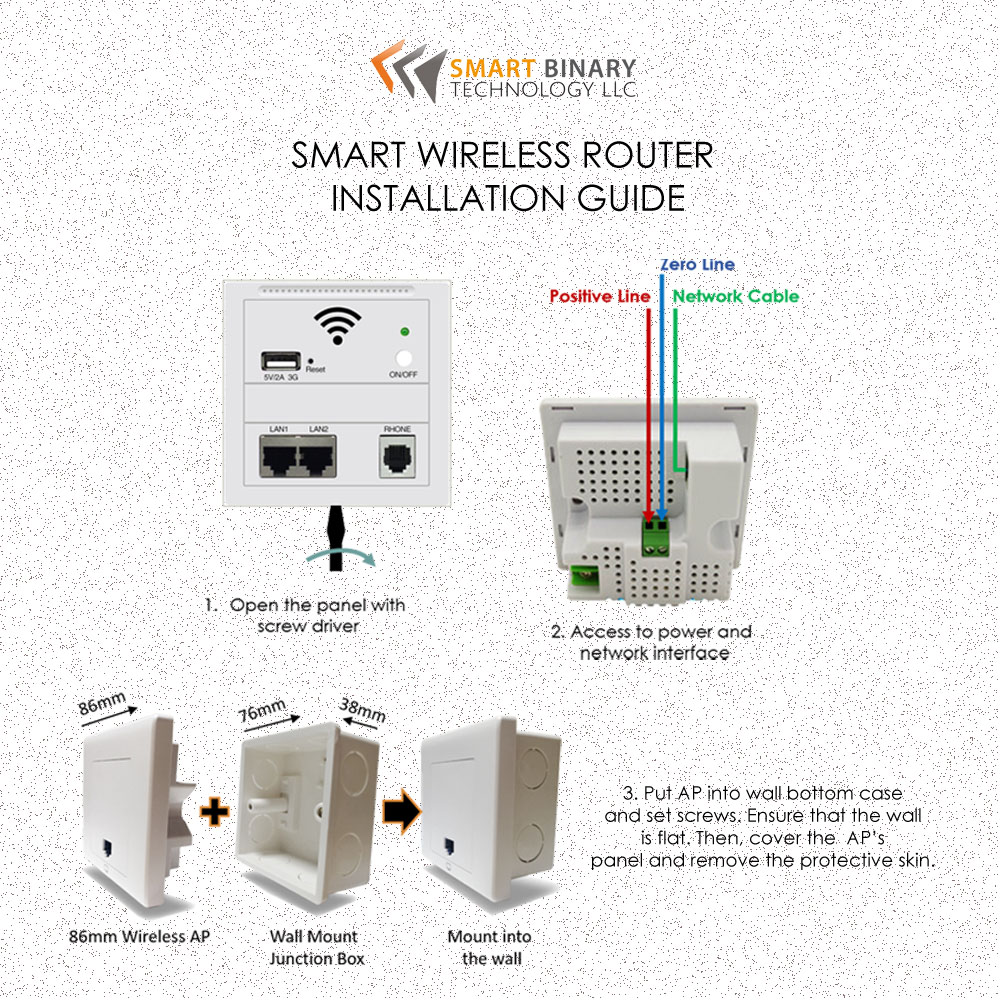

    This Wireless Router is a stylish in-wall Wireless AP, which features a standard 86 x 86 mm European outlet panel design and can be installed in the existing building structure to construct a convenient wireless network without consuming extra time and money. It complies with IEEE 802.11b, g, n wireless standard, and provides LAN speed up to 150Mbps. Perfect for home, office, hospital, and other environments, such as hotels, airports, coffee shops, shopping centers, etc.

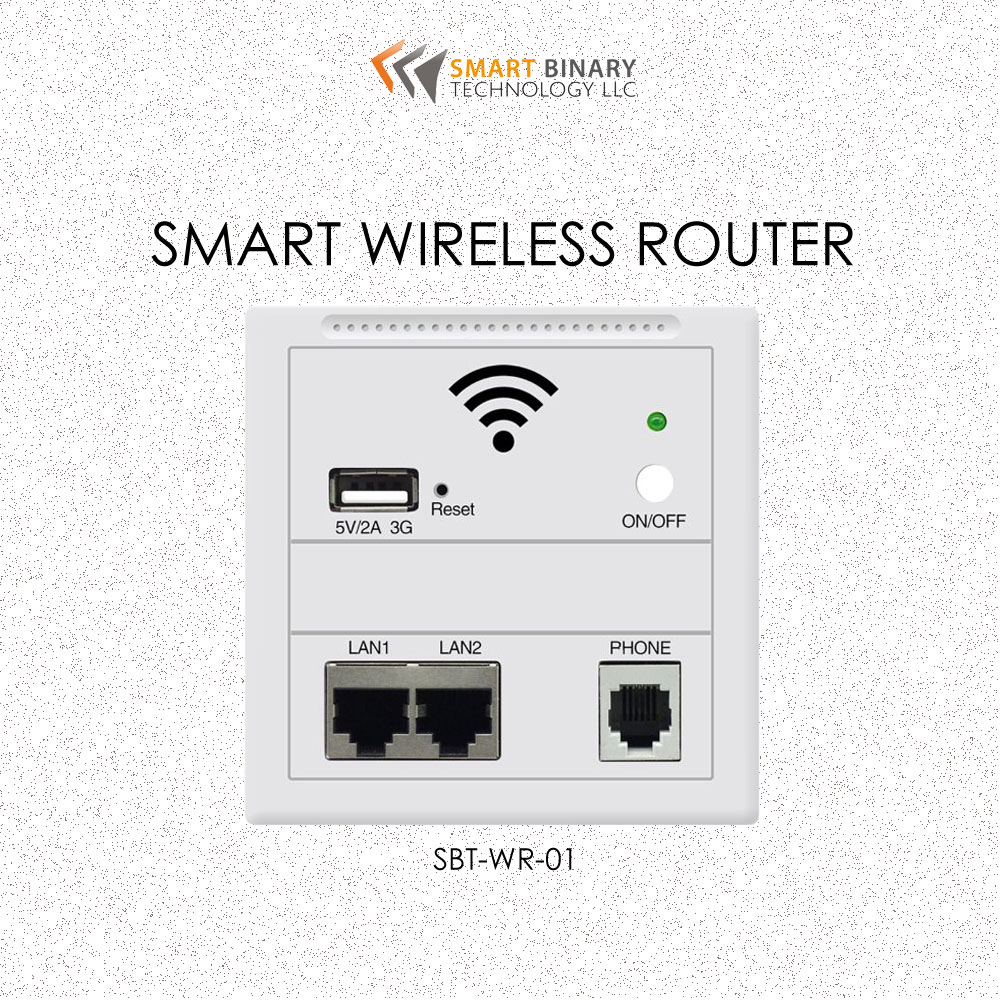

    Model: SBT-WR-01
    Power: <5W
    Power Supply: Support AC100-240V OR PASSIVE POE 24V (Poe version need match 24V POE
    Switch/Adapter to use)
    Maximum Output Power: 20dBm
    Material: ABS
    Antenna: Omni-directional Built-in 3dBi antenna
    Wan Ports: 1
    Lan Outlet: 2
    Usb Outlet: 1
    Telephone Line Port: 1
    Wi-Fi Transmission Standard: IEEE 802.11ab, g, n
    Frequency Range: 2.4GHz
    Wireless Rate: 150 Mbps
    Wireless Security: WEP, WPA-PSK, WPA-TKIP, WPA2 AES
    Wireless Transmit Power: 14 ~17 dBm (Typical)
    Modulation Mode: OFDM DSSS BPSK QPSK CCK
    Operating Temperature: 0 °C ~40 °C
    Storage Temperature: -40 °C~70 °C
    Relative Humidity: 10% ~ 90% (Non-Condensation)
    Support System: Windows/Mac/IOS/Android
    Product Measurement: 8.5cm x 8.5cm x 3.5cm
    Product Package Measurement: 10.5cm x 10cm x 4.5cm
    Weight: 130g
    Computer Set-Up: Start, Control Panel, Network and Internet, Network and Sharing Center, Change adapter settings, Wireless network connection, Attribute, Internet protocols, Obtain IP address automatically
    System Requirements:WLAN access point/client according to IEEE 802.11n, g, b. The WLAN client must support at least the WPA encryption standard. WLAN access point and the WLAN client with automatic IP address assignment (DHCP). Forwarding of IPv4-based protocols/Address Resolution Protocol. The network name (SSID) of the WLAN access point must be set to "visible".
    1 x Wall wireless AP
    1 x English user manual
    Default web address:
    The default login name: admin
    Password: admin

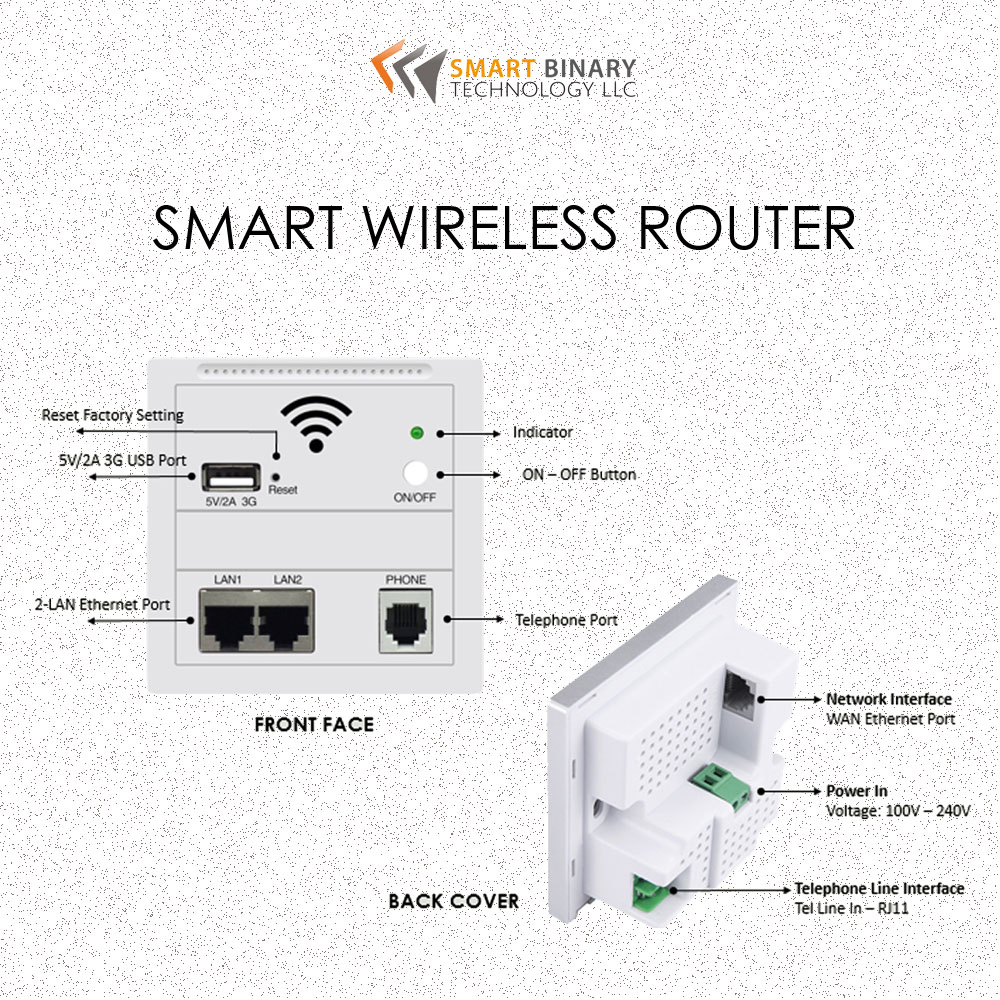

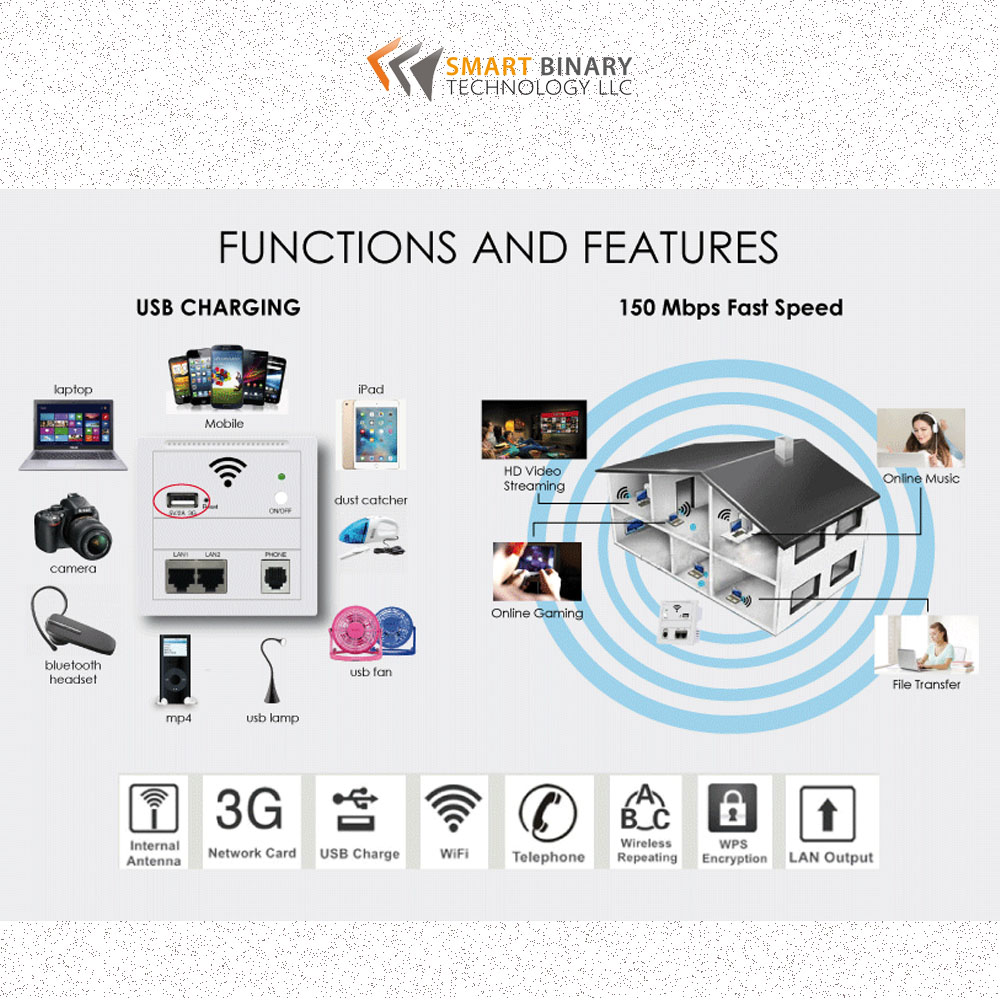

    • Complies with IEEE 802.11b/g/n
    • Supports 2.4 GHz WLAN networks with speed up to 150Mbps
    • Inner top antenna for super strong signal, wider coverage and penetration
    • Improves wireless coverage in all WLAN networks
    • Dual LAN outlets available, including the 10/100Mbps Auto-Negotiation Ethernet LAN port
    • 5V/2A Port to charge most smartphone, tablet and other USB enabled devices
    • USB outlet for USB flash disk and mobile HDD, great for data sharing
    • Telephone line port
    • WLAN security with WPA2, WPA and WEP (128/64)
    • On/Off button for convenient wifi switch
    • Support AC input voltage of 110V-240V for worldwide usage
    • European 86 type wall outlet design
    Available Colors in
    1. White

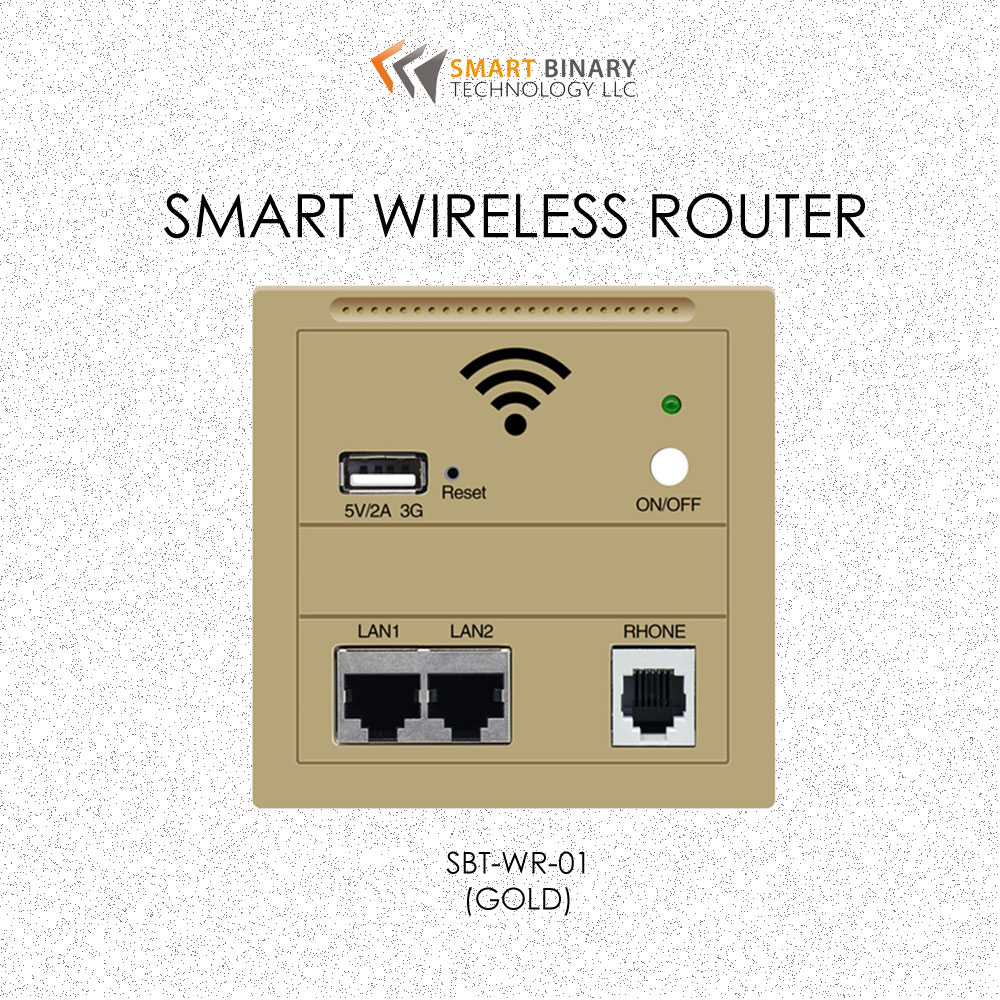

    2. Gold
