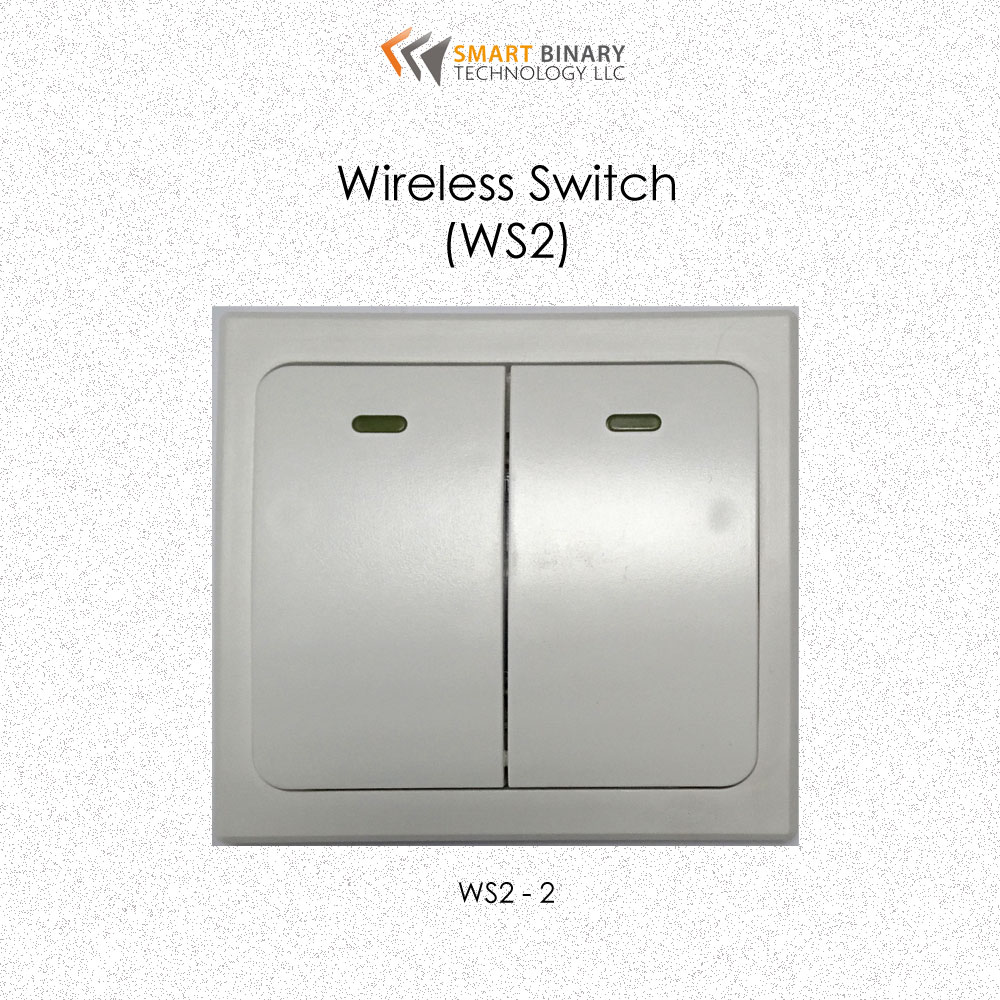

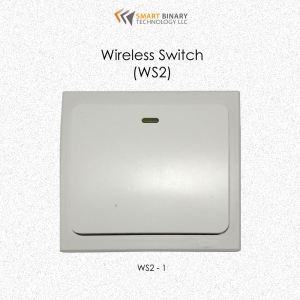

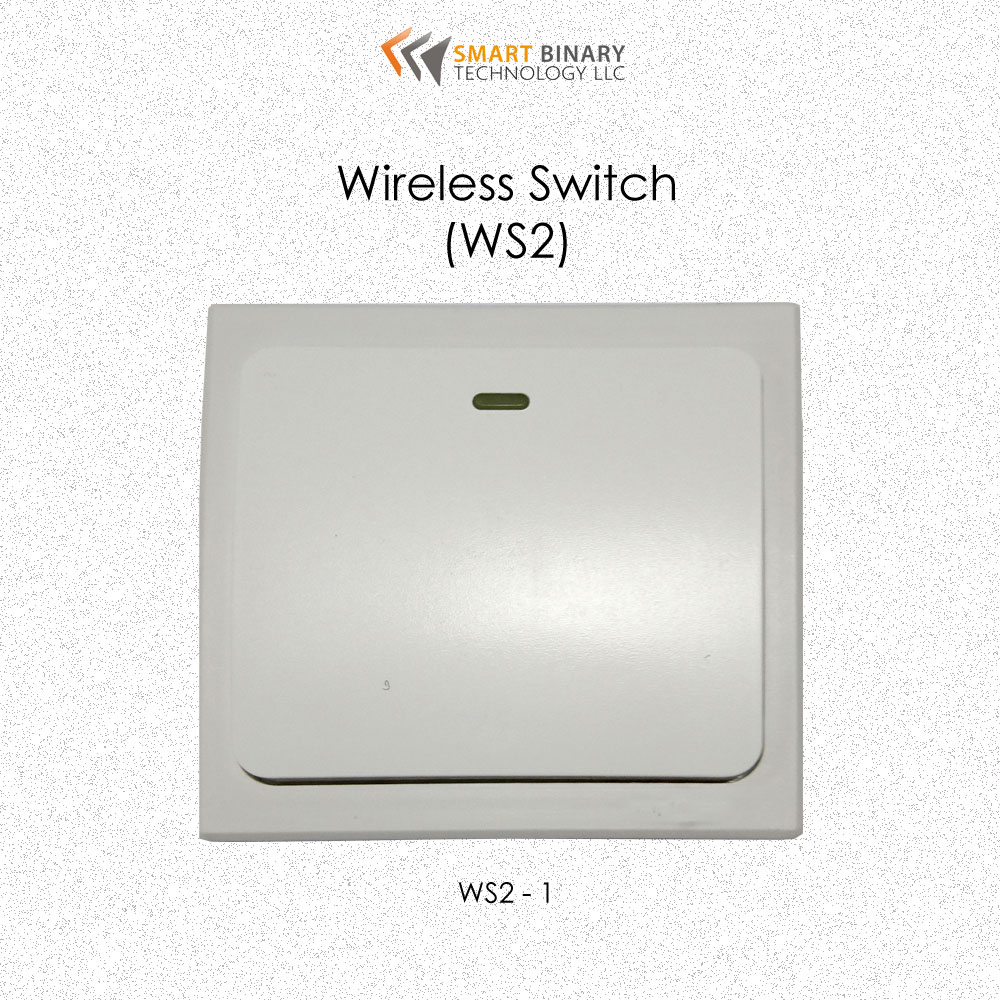

WS2

Quick Overview

    “An easier and more convenient switching device. Save energy and money upon installation."
    • No cables needed
    • No batteries needed
    • Energy-Saving
    • Save money
    • Safe: Waterproof and Fireproof

    WIRELESS SWITCHES

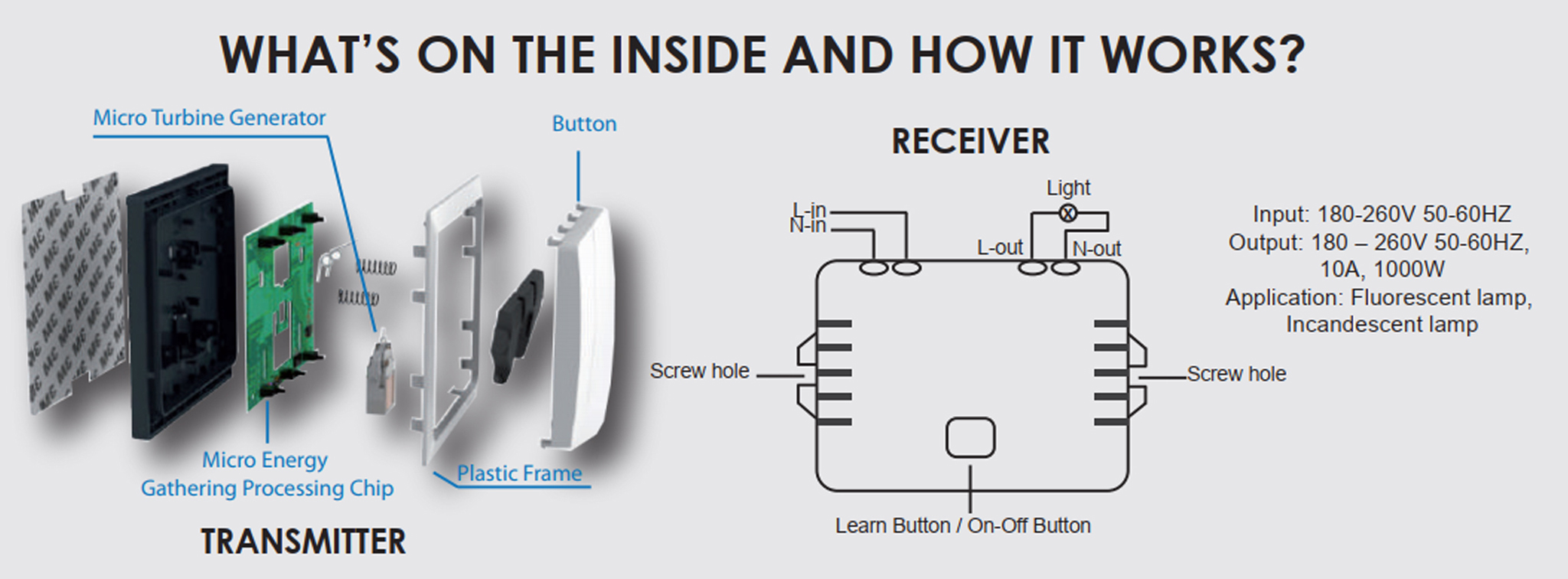

    Wireless Switch is a wireless radio transmitter without being connected with any control circuit or battery, which plays its role by matching with a wireless receiver. It can control the receiver, therefore it can remote-control the load (lights, fan, etc.) connected with the receiver.
    The innovative self-powered technology is used as a self-powered wireless switch, which can harvest the energy caused by the finger's pressing to send the radio signal. Therefore, the battery is not required, which can avoid the trouble of changing the battery and protect the environment.

    WS2-WS3 - TRANSMITTER

    Power Supply: Press to generate electricity / Self-Powered
    Frequency: 433MHz
    Modulation Method: GFSK
    Temperature: 25°C - 70°C
    Humidity: 0 – 75% rh, no condensation
    Effective Distance: 30M Indoor, 80M Outdoor (can pass through wall)
    Enclosure: Fireproof PC
    Weight: 60g
    Key Type: On/Off / 1 key / 2 keys / 3 keys

    WS2-WS3 - RECEIVER

    Power Supply: AC 220V/230V
    Max Load: 5A
    Load of Filament Lamp: 500W
    LED Lamp: 100W
    Static Power: <1W
    Radio Frequency: 433MHz
    Radio Range: 30M Indoor, 80M Outdoor (can pass through wall)
    Working Temperature: -40°C - 60°C
    Humidity: 0 – 75% rh, no condensation
    Storing Environment: Temperature: -50°-70°
    Humidity: 0 - 75% RH, no condensation
    Enclosure: Fireproof PC
    Weight: 30g

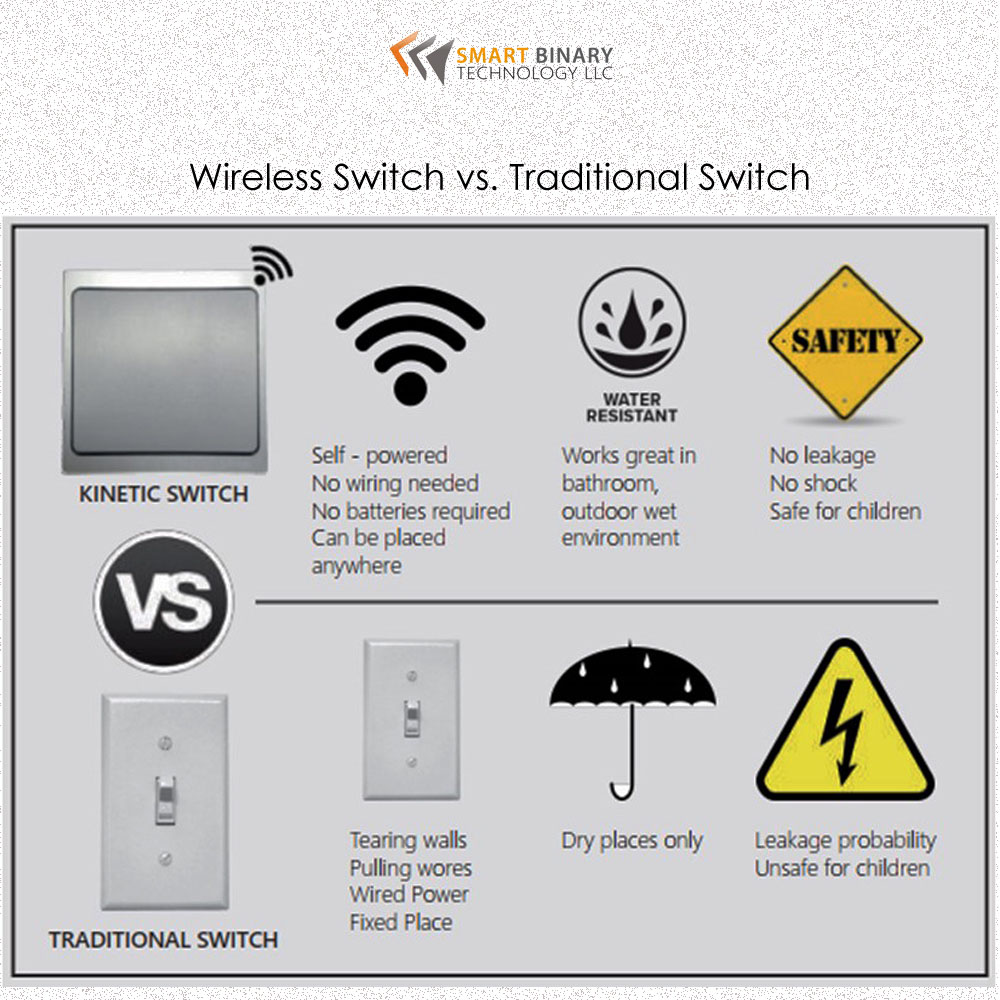

    WIRELESS SWITCH FEATURES

    • ENVIRONMENTAL PROTECTION AND ENERGY-SAVING
    Self-powered. No cable connect. No battery. No solar panel inside. Save time, save cable & labor cost.
    • CONVENIENCE
    Easy installation and flexible move by double-side adhesive tape or screws
    No damage to wall, specialized for redecoration and house of timberwork
    • SAFETY AND RELIABILITY
    Fire-resistant, electric-prevention, lighting-protection, No radiation
    Reliable anti-interference function by the encryption codes
    • HIGH PERFORMANCE

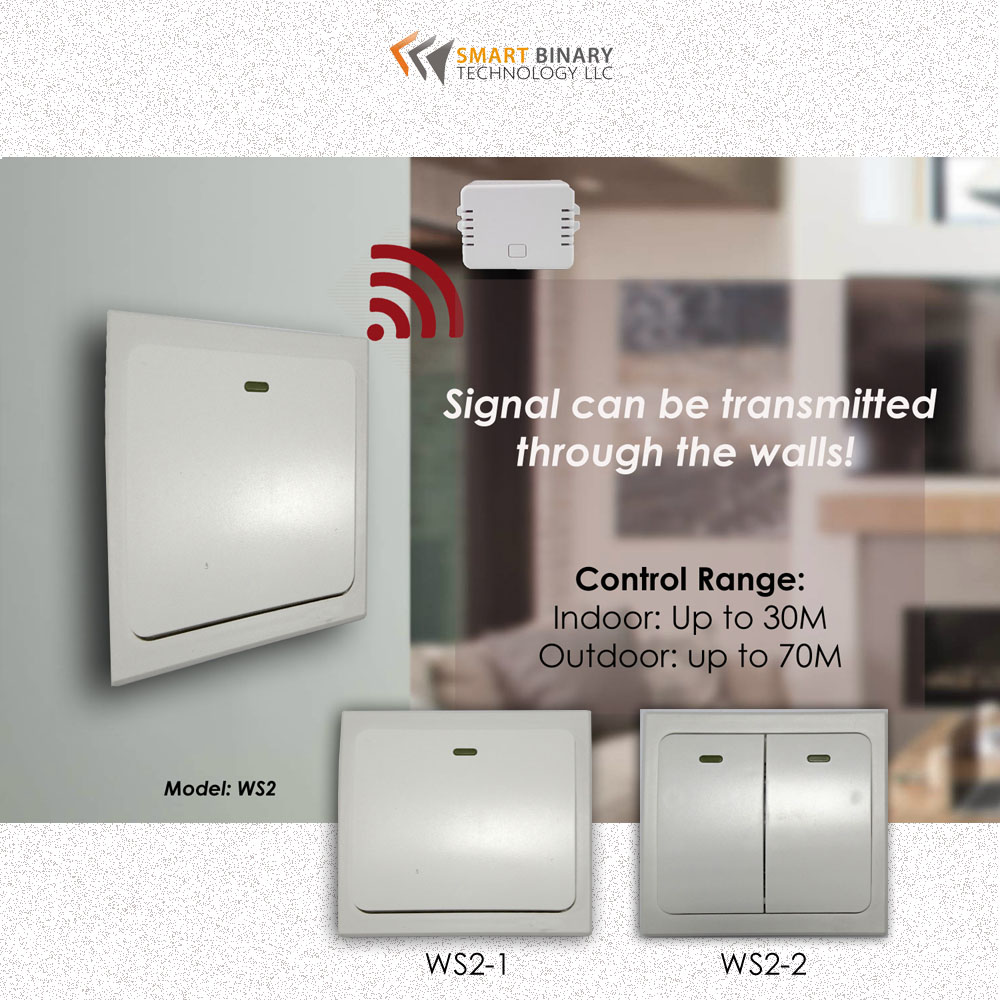

    Be workable within 30meters inside house (through 2-3 walls) or 80 meters outside, no directional limit
    More than 200,000 time for press key
    Can endure high and low temperature
    • MULTIFUNCTION
    Available for single switch to single receiver, single switch to multi-receiver. (Maximum 10pcs), multi-switch to single receiver, multi-switch to multi-switch.
